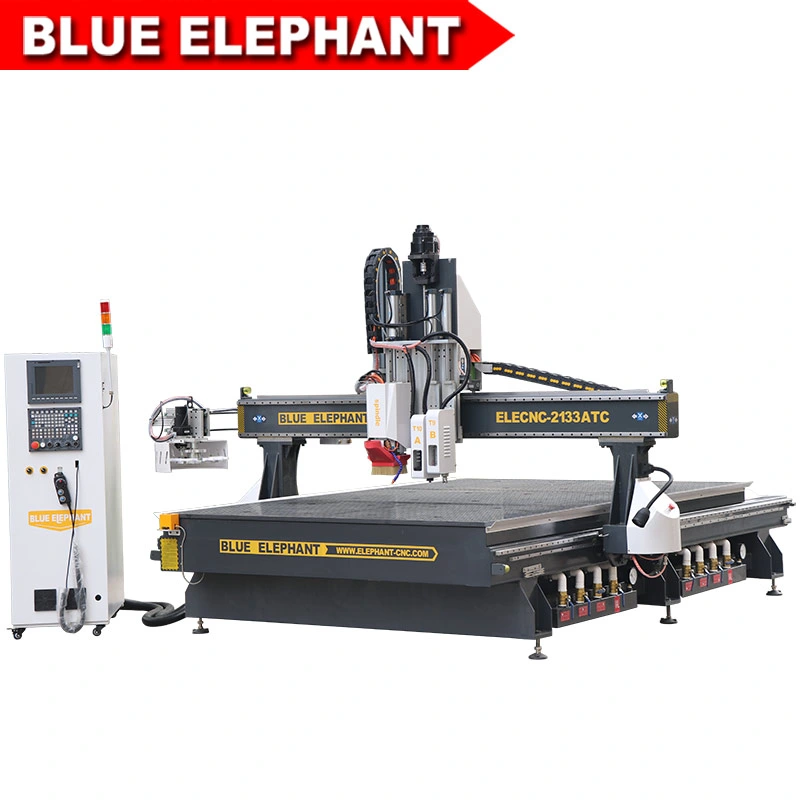

New Design Big Wood CNC Router with auto tool changer for Door Manufacturer
Advantages :
- Adopting the Carousel 8pcs automatic tool magazines automatic, which has fast tool change speed and high processing efficiency.
- Equipped with Germany EOT-3 knife with TCT-1press wheels, it is more convenient in terms of operation and maintenance.
- With 9kw air-cooled spindle, the spindle speed is fast and the cutting ability of the work piece is strong.
- Adopting international imported brand parts, which guarantees the longest service life of the machine.
Parameters :
| Descriptions | Parameters |
| Working area | 2100x3300x400mm |
| Working voltage | AC380V, 3Ph, 50Hz (Optional: 220V) |
| Control system | yntec 11MB control system with 1.8m control box |
Dust collect | New type 1.5kw double bags dust collect with CE |
| Spindle | ATC 9.0KW Italy HSD air cooling spindle |
| Spindle speed | 0-24000rpm |
| Motor and Driver | 850W Japan Yaskawa servo motor and servo driver |
| Inverter | Taiwan Delta B 11KW inverter |
| Table surface | T-slot and vacuum table with 2sets Germany Becker pump(kvt3.140) 4kw |
| Frame | New type thicker and bigger heavy duty 10-12mm with heat treatment |

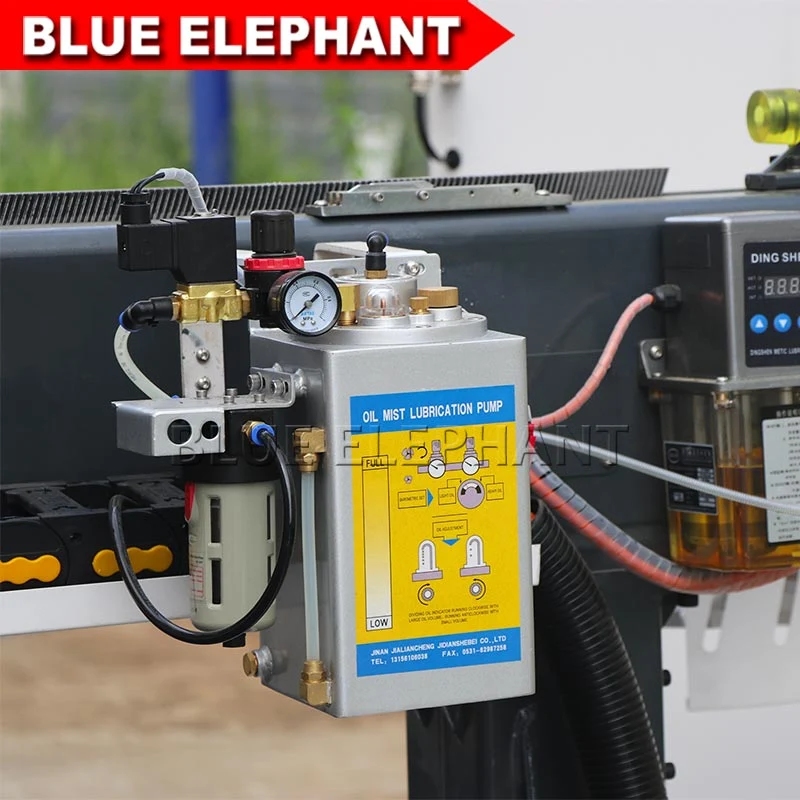

| Lubrication system | New type 1.5L Automatic lubrication system for rails |
| Reducer | Japanese Shimpo reducer total 3sets |
| Transmission | X,Y-helical rack pinion,Z ball screw TBI ball screw from Taiwan |
| Linear rail | Sweden SKF Group international advanced self-lubricant ABBA linear guide/Taiwan PMI,25mm |
PS:All the working area and specifications can be customized according to your requests.
Main parts:
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Sample show:
Packaging and shipping:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
